I．Introduction

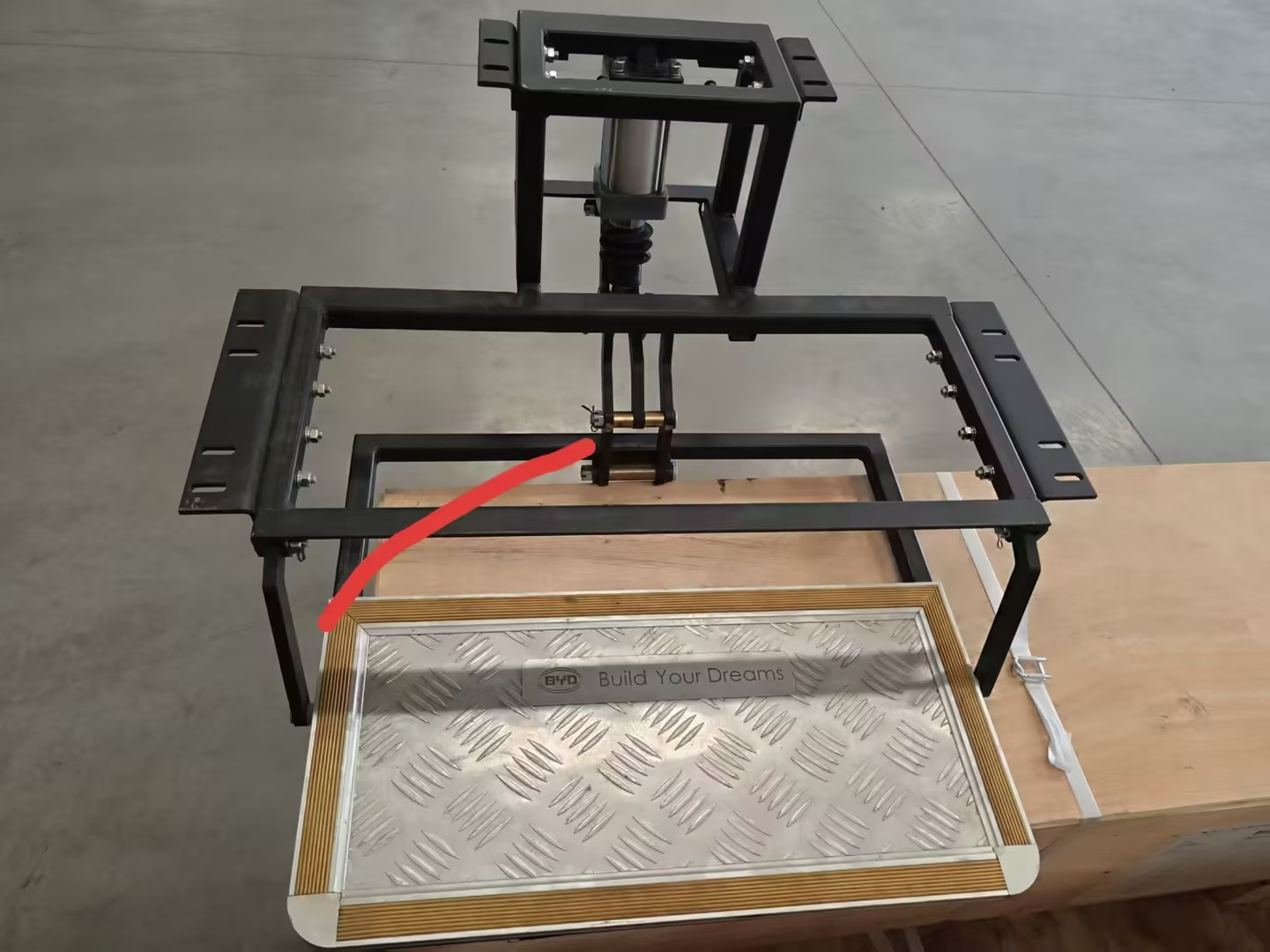

The Pneumatic Step is designed for installation below the doorway threshold of buses. The unit is supplied as a pre-assembled fully factory tested module for easy installation. It is manually operated and when deployed it bridges the height gap between the floor of vehicle and the pavement or station platform. The system provides a step that assists the boarding and disembarkation for the passengers. The design criteria set forth were:
· To provide easy access for passengers to a public transportation vehicle.
· To provide a unit that is economical and reliable.
II．Main Parameter
Operation: Pneumatic
Air Pressure: 90Psi
Voltage: 24VDC
Maximum Loading: 200 kg
System Weight: 50 kg
Step Dimension:
Width: 625 mm
Depth: 310 mm
Overall Dimension:
Width: 805mm
Depth: 532mm
Height: 305mm
