Background

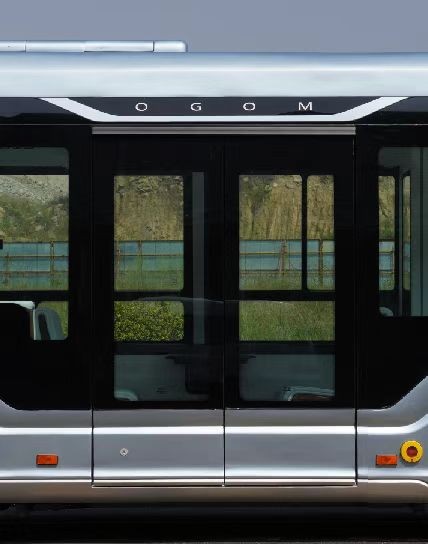

EOSP250 electric outside sliding plug door system is designed mainly for exit door of high end bus based on metro passenger door technology.
Features

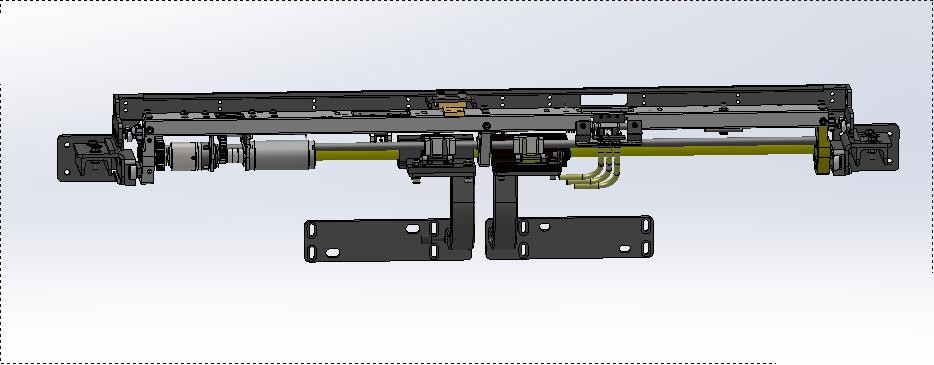

Two direction driving mechanism with one motor;
Over-center self-locking system;
Door panel upper-lower driven simultaneously;
Wide clearing opening;
Full glass outlook;
Optioanl pneumatic emergency release
Specifications
Operation Temperature: -40°C - 60°C
Operation Voltage: DC24V
Minimum Life Cycle: 1,000,000
Door Closing or Opening Time: 1.5 – 3.5 Seconds
Door Opening Dimension: 900 – 1500mm
Style: Single or Double
